Enhanced Shutdown Panel

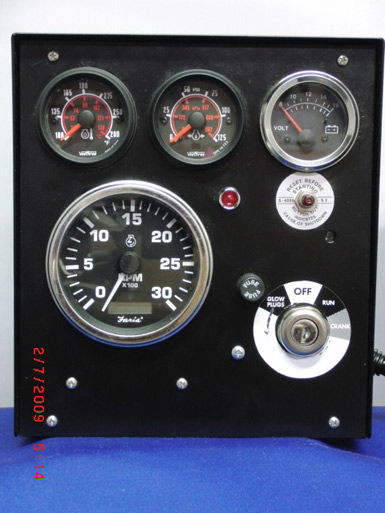

Enhanced Analog Shutdown Control Panel
Protects an engine from damage due to loss of oil pressure or coolant - Does not require the use of electric pressure and temperature senders -
All components and internal wiring are accessible from the front of the panel - Mounts to customer furnished mounting bracket

Standard Features

  • Closed, 3 piece, steel, powder coated enclosure
  • Similar in size (9"x 8"x 4") to Murphy WDU style
  • Suitable for Diesel, Natural Gas or Gasoline fueled engines
  • Internal access via removable front panel face
  • Covered push button for start
  • Covered push button for emergency stop
  • System voltage gauge 12 VDC (ask if 24 vdc is required)
  • Electro mechanical high temperature indicating / shut down gauge (6 ft capillary)
  • Electro mechanical low oil pressure indicating /shut down gauge 1/8 male npt connection
  • Latching 12 vdc relay to control power to fuel or ignition systems
  • Front mounted fuse holder
  • Internal wiring terminated at a 10 position terminal strip

Typical Upgrades

  • Tachometer/hourmeter (input from alternator or Mag pick up)
  • Electronic indicating / shut down gauges with compatible senders
  • 3 position lever type ignition switch for start, stop & crank
  • 4 position keyed ignition switch for start, stop, crank and glo-plug
  • LED indicator for glo plug operation
  • 3 rubber isolators
  • Throttle / cable
  • Wire harness
  • Others please ask

Request More Information Today!
